Bhapsi Bridge: A Case study of Collapse, Maintenance Issues and Restoration.

This post have been published in HMIS News Later Volume-29 (Page 30+) of DoR

Summary :

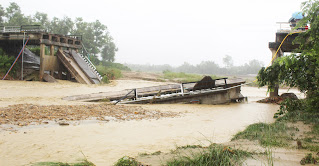

Bhapsi Bridge along E-W Highway collapsed in flood dated 13th June, 2019. It was opened to traffic by installing modular panel Belly Bridge for short term. Due to high traffic and heavy load it was damaged and repaired many times and the way of operation was questioned by people of different sector demanding LoS as per highway standard. Later on different alternatives were searched and finally 50m long bridge restored in short period of 4 to 5 month as a mid term solution. The article has enlightened about the engineering judgement and decisioning sequences to achieve t the target.



Publication Link:

https://online.fliphtml5.com/iykbz/wumj/

Planning, Implementation, Supervision & Construction of Infrastructure Project for Road & Bridge Sector.

 Service entry Training for newly recruited Engineers for their job and latest methods and techniques.



DRO Janakpur Programme : DoR, MoPIT, FY: 2078/79

 Download Link: DoR Budget, Redbook 2078-79

Quality Management in Construction Project - Overview & Concept :





Standards, Specification & Working Norms for Civil Works.

Nepal:

Department of Roads Doccuments for SRN (National Highway & Feeder Roads):

• Download . Working Norms for Road & Bridge Construction.
• Download : Standard Specification for Road & Bridge Works - 2073.
• Download : Norms for Consulting Services - 2075
• Download : Nepal Road Standard - 2070 for SRN Roads.
• Download : Design Standard for Feeder Roads - 1997.
• Download : Bridge Design Standard - 2067
• Download : Nepal Urban Road Standard - 2076



Department of Local Infrastructure ( former DoLIDAR) for LRN ( DCRN & VCRN Roads.

• Download : Work Norms for Agricultural & Rural Roads - 1998.
• Download : Nepal Rural Road Standard - 2069.

Urban Planning & Building Construction:

• Download  : Specification for Building Construction Works.

• Working Norms for Rate Analysis of Building Works. Download.
• Rate Analysis for Reference : Reference Link https://adcampaign.com.np
• Download : Nepal Urban Road Standard - 2076.
• National Urban Policy -2007. Download.
• Building Valuation Guidelines. Download.
• Guideline for use of colour in public building. Download.
• Urban Planning Norms & Standard - 2013.Download
• National Building Code - 2015. Link

Irrigation Engineering:

• Norms for Feasibility Study of Irrigation Project. Download.
• Planning & Design Manual of Irrigation Structure. Source Link

Water Supply & Sanitation:

• Department of Water Supply & Sewarage Management. Reference Weblink.

INDIA & Others:

Road & Bridge Construction:

• Indian Roads Congress (IRC)

• MoRTH India.

• Panchayat Raj Engineers

• BSI Groups.

• SCOT-Tag.

• DMRB.

• Australian.

•


Pathlaiy-Birgunj Road Project, Trade-Route Improvement Project, DoR.

Government of Nepal

Ministry of Physical Infrastructure & Transport

Department of Road

North-South Trade Route Improvement Programme Directoriate

Pathlaiya - Birgunj Road Project.

Pathlaiya, Bara.

Duration : (2075-09-09 to 2077-06-06)

.....................................................................................................................................................................................................................................................................................................................



......................................................................................................................................................................................................................................................................................................................

Location of Project: Bara & Parsa District.

Summary of Work: Upgradation of Two Lane road into dedicated Six Lane with separated Intermediate Service Lane.

Fig.: Typical Cross-Section of Road Section.

Google Location of Project Site:

RCC Bridge Design : Mannual & Software Approaches.

Fig.: Akashi Kaiyo Double Deck Suspension Bridge, Japan with world largest central span 1991m.

Bridge Engineering Class Notes:

Bridge Design:

A bridge, in my opinion is not just an structure that provide passes over an obstacle without disturbing the way under it, but in fact is like the backbone for engineers working in the field of transportation, structure & others. It is probably the most studied civil engineering topic throughout the world & current advancement in modelling, design construction methodology in this sector is somehow like decorative cosmetic for engineers. I strongly believe "A Bridge should either be beautiful or not visible while travelling through a road". It's just the love for bridge structure, its interrelated elements are not only limited to aesthetic. In fact embraces dynamic variables related to structural, geotechnical, hydrological, socio-environmental, economic situation and construction methodology & capability of the personals involved in this sector.

In my quick-sense, bridge design is all about defining desired geometry, assigning & analyzing material suitability for stress functions induced due to combination of load function with its compliance to the Geo-technical & hydrological situation. It's about selection of locational geometry, analyzing configuration and ensuring constructability and sustainability for designed period for functions it is constructed.

In Nepal, Bridge design is yet 100 years back wrt world due to construction capacity of contractors, financing priority of department, design philosophy and many more. Engineer's here practice bridge design by manual excel computation with excessive factor of safety, that may be the cause bridges seldom failed here due to structural cause. Most of bridge failure case in Nepal is due to river morphology and improper geo-technical investigation.

What are the designing options in Nepal for designer:

• Manual Excel based computation : most preferred here may be because the personals involved in checking process and approving it prefers that approach or yet the designers are not liable for its consequences.
• Modelling Approach : A series of structural design software are being used here, like STAADPro/SAP/CSi Bridge and other Finite Element based software. Although Bridge specific softwares like MiDAS/CSIBridge/BIM etc is available with stage moderating capacity, they are not yet believed here in lag of contractor's confidence or risk sharing ignorance. Another cause is yet we are dependent on IRC provisions and following the Working Stress Method.

Hence, I shall be explaining different design approaches and their comparative adaptability in current scenario:

Mannual Computation Approach of Bridge Design:

I would like to illustrate it with some manual calculations preferred for comparison: I am customizing my excel design sheets for all possible loading, combination of foundation,bearing types, so would be updating with global academic literature, hence its just comparing the relations till date. I am yet working on it to make user friendly and would like to cross-verify from well known designer here. Some components are knowingly kept pending for yet.

Comparative Relation of SF & BM for different IRC Vehicle Loading for Longitudinal Girder of T-Girder RCC Bridge:



Structural Modelling Approach of Bridge Design:  To be continued for long time to complete it.

A. CSi Bridge : Where to find it & How do it work?

CSi Bridge is a software for finite element analysis of motorable bridge. It is an American Software developed by CSi.

It is illegal to use cracked version of software, most of the people are looking for that in search engine and also you can find too many source link for eg. (Click here to download). But these links are not working mostly with license error like in picture. One of the verified link of working software is attached here.
How to download CSi Bridge, with crack link.

• Download Link for CSi Bridge V21.1.10
• Crack file for CSi Bridge

Links of Video Tutorials for online learner.

• CSiBridge Tutorial by CSi.
• Concrete bridge in CSIBridge 2017
• Bridge engineering by Kishore Kumar 1 / 26
• CSI Bridge Video Tutorials by Khairub Alam
• Fundamentals of Bridge Design-Concept of design and modeling
• Leap bridge : AASHTO LRFD Bridge modeling & design Examples.
• BIM applications for Roads, Highways & Transportation design.

Hope you like the post, comment if anything not clear or need extra clarification.
